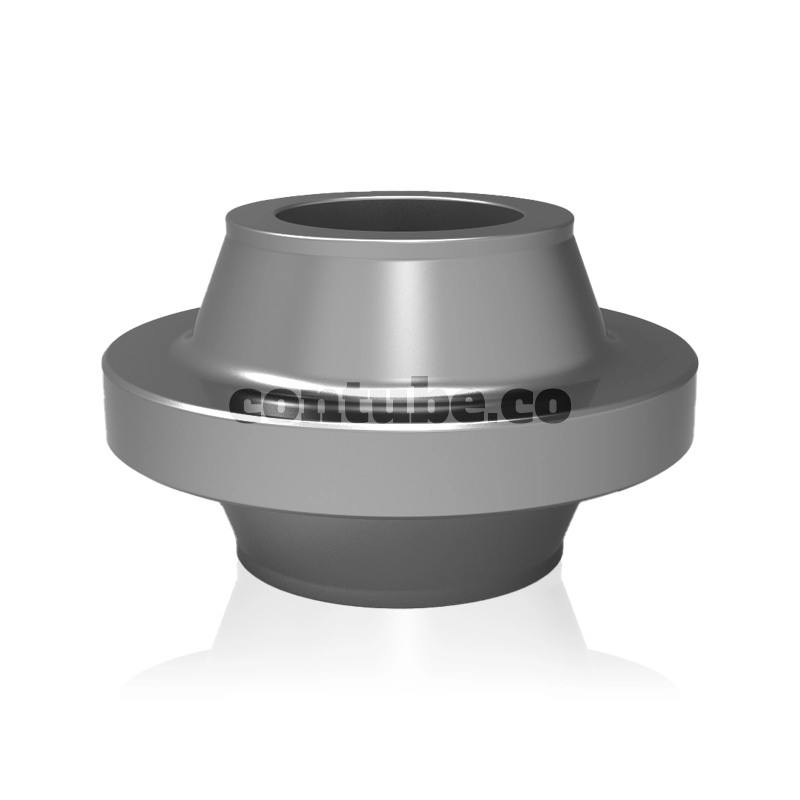

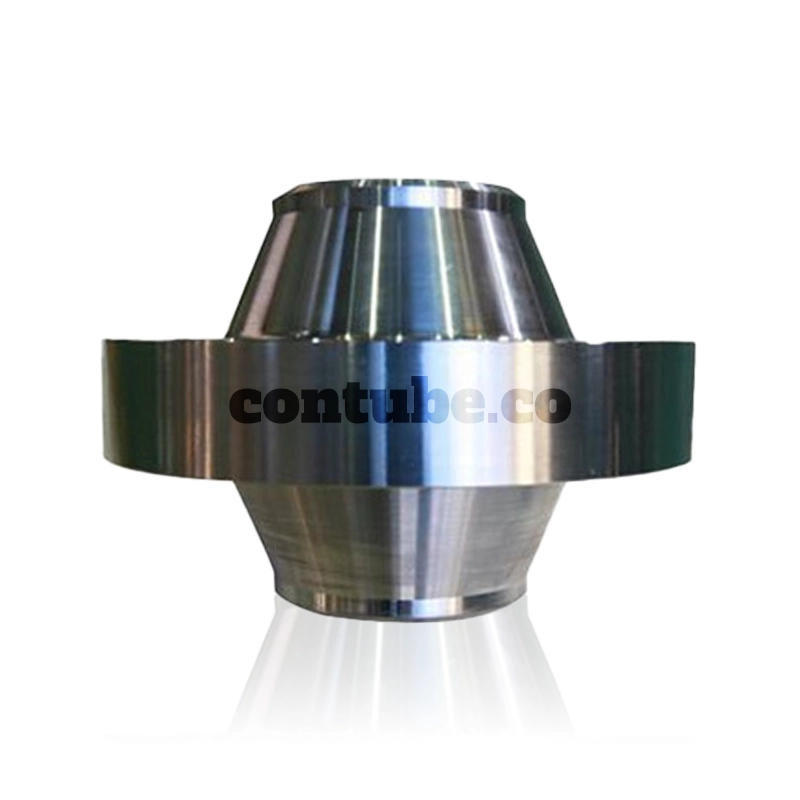

An anchor flange is a device that is installed on a pipeline to counteract axial movement, and prevents the pipeline from moving. Once the flange is attached (welded) to the pipe, the flange is usually anchored to a concrete foundation.
The anchor flange not only prevents axial movement, but is also installed when the pipeline crosses a bridge or river. Over a long distance, the pipe with huge liquid tends to sink.
The use of anchor flanges on both sections of the pipeline secures the position of the pipe.
One of the common characteristics of a metal pipeline is the inherent movement caused by the flow of fluid through the pipe, as well as by the expansion and contraction caused by temperature changes.
When a pipeline makes a sharp turn, the fluid flow in the pipeline attempts to push the pipe in the direction of the flow.
By placing an anchor flange on the pipeline and securing it in place by locking it into a concrete pillar buried deep in the ground, the forces pushing against the pipe are transferred to the earth.
For large diameter, high pressure and long distance oil and gas pipelines, anchor flanges act as important supporting elements. They are usually placed underground or buried.
SIZE:
1/2"-24"
CLASS:
Class 150 - Class 2500
MATERIAL:
ASTM A105，ASTM A350 Gr. LF2，ASTM A350 Gr. LF6 Cl.1，ASTM A350 Gr. LF3，ASTM A350 Gr. LF6 Cl.2，ASTM A350 Gr. LF1 Cl.1，ASTM A182 Gr. F1，ASTM A182 Gr. F2，ASTM A182 Gr. F11 Cl.2，ASTM A182 Gr. F22 Cl.3，ASTM A182 Gr. F5a，ASTM A182 Gr. F9，ASTM A182 Gr. F91，ASTM A182 Gr. F12 Cl.2，ASTM A182 Gr. F5，ASTM A182 Gr. F92，ASTM A182 Gr. F304，ASTM A182 Gr. F304H，ASTM A182 Gr. F316，ASTM A182 Gr. F316H，ASTM A182 Gr. F317，ASTM A182 Gr. F304L，ASTM A182 Gr. F316L，ASTM A182 Gr. F317L，ASTM A182 Gr. F321，ASTM A182 Gr. F321H，ASTM A182 Gr. F347，ASTM A182 Gr. F347H，ASTM A182 Gr. F348，ASTM A182 Gr. F348H，ASTM A182 Gr. F310，ASTM A182 Gr. F44，ASTM A182 Gr. F51，ASTM A182 Gr. F53，ASTM A182 Gr. F55，ASTM B462 Gr. N08020，ASTM B564 Gr. N02200，ASTM B564 Gr. N04400，ASTM B564 Gr. N06600，ASTM B564 Gr. N08800，ASTM B462 Gr. N10665，ASTM B462 Gr. N10675，ASTM B462 Gr. N10276，ASTM B564 Gr. N06625，ASTM B564 Gr. N08825，ASTM B462 Gr. N06022，ASTM B462 Gr. N06200，ASTM B572 Gr. R30556，ASTM A479 Gr. N08904，ASTM B462 Gr. N08367，ASTM B564 Gr. N08031，ASTM B462 Gr. N06030，ASTM B462 Gr. N06035，ASTM B564 Gr. N08810，ASTM B511 Gr. N08330，ASTM B564 Gr. N06230
SURFACE TREATMENT:
Epoxy Coated,Coated With Anti-Rust Oil Coating,Transparent paint,Blue Paint,Black Paint,Yellow Paint,Electrogalvanizing,Hot dip galvanizing,Powder coating,Electropolishing,Dacromet.
FLANGE TECHNICAL:
Free forging flange,Die forging flange.
