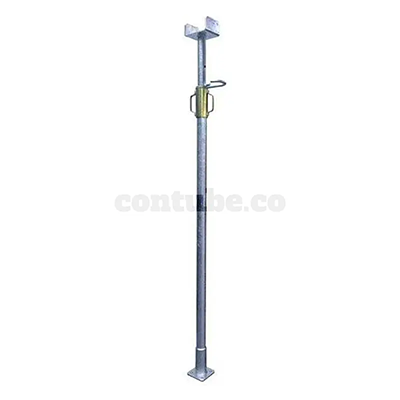

About the FORK HEAD prop
Props made with fork already welded to support the beam in the shoring system.
Fork head props come in 4 models with different extension and capacity:
CONTUBE 30
extensible between 1,80 and 3,00 metres
CONTUBE 36
extensible between 2,10 and 3,60 metres
CONTUBE 41
extensible between 2,40 and 4,10 metres
CONTUBE 50
extensible between 2,90 and 5,00 metres
Below are the features of CONTUBE fork head props:
Hook bevelled at the ends: easier to insert into the holes thanks to the ergonomic shape;
Anti-shearing system: the greater length of the inner pipe with respect to the outer one enables guaranteeing an at least 10 cm difference between the two so as to prevent injury;
Inner holes obtained using machines capable of perfectly machining them or by means of a milling system which obtains turnings on the surface of the pipe: both ways enable guaranteeing the complete absence of burrs near the holes;

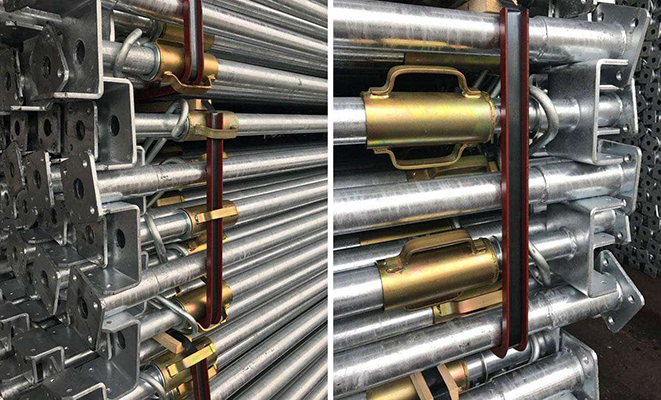

Inner pipe anti-slip-off system, so as to prevent the pipe from inadvertently slipping off thus guaranteeing wholeness and safety when laying down and displacing at the worksite;
Hot-dip galvanization, with guaranteed minimum thickness of 50 microns.
Upon request:sticker customised with customer's logo, bearing information on capacity and maximum extension;
Quick release system, an accessory that guarantees the release of the prop under the load by just hitting with the hammer to quicken and simplify the release procedure as well as reduce the operator's effort.
Beware: the capacities indicated in the table always refer to the capacity of the single post shore. Higher capacities can be achieved by binding, gate-like systems or pipe-coupling systems. The gate-like system is a temporary structure suitable for creating a loading tower. Binding the props in fours enables maximising the capacity. The pipe-coupling system provides for a pipe above and beneath with couplings; it is the same figure of the gate, which is more economic though less quick.

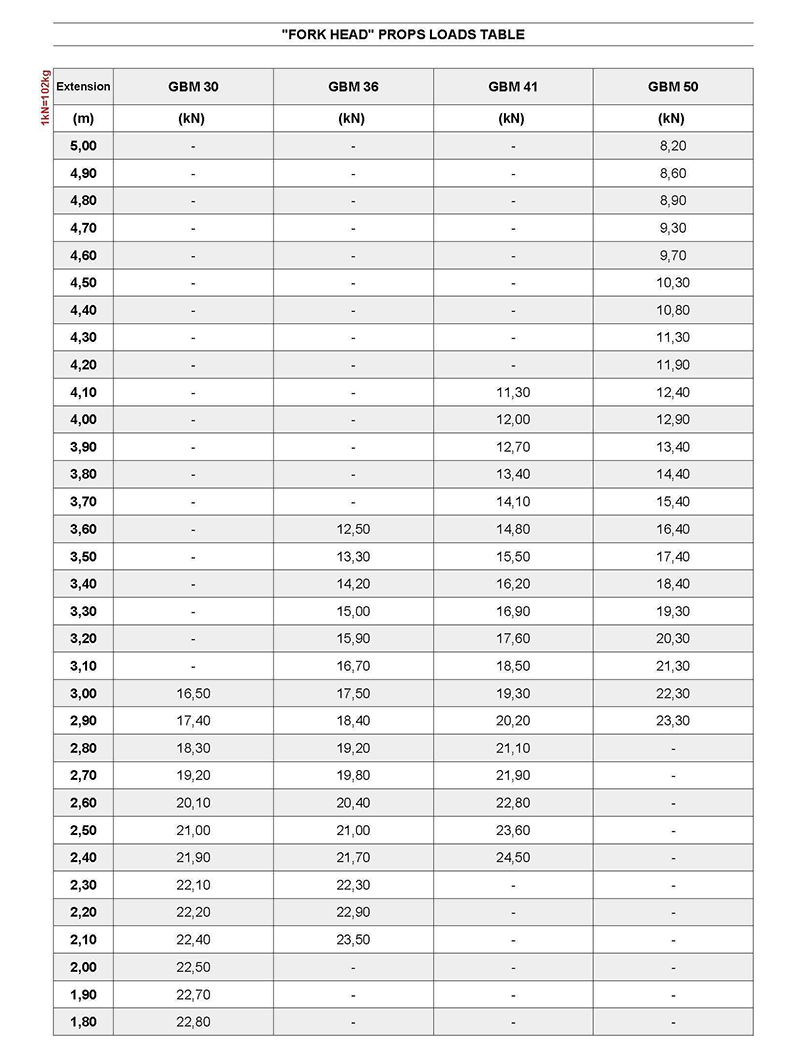

Fork head props loads table

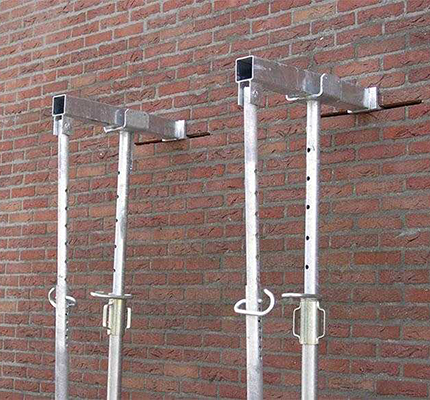

Stay up props
Well known as stutalone, is a simple tool to support existing facades during renovations, when the use of standard post shores is not possible.

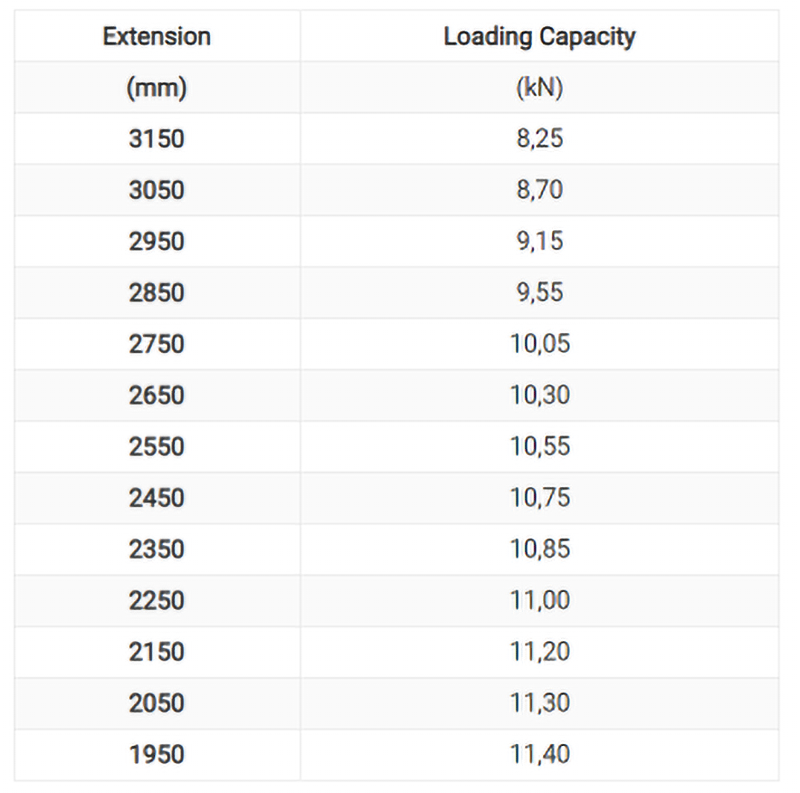

Below are their technical specifications:
Min length 1950 mm;
Max. length 3150 mm;
Max. load retracted 1140 kg;
Max. load extended 825 kg;
Distance between facade and stamp 250 mm;
Weight 27 kg.
