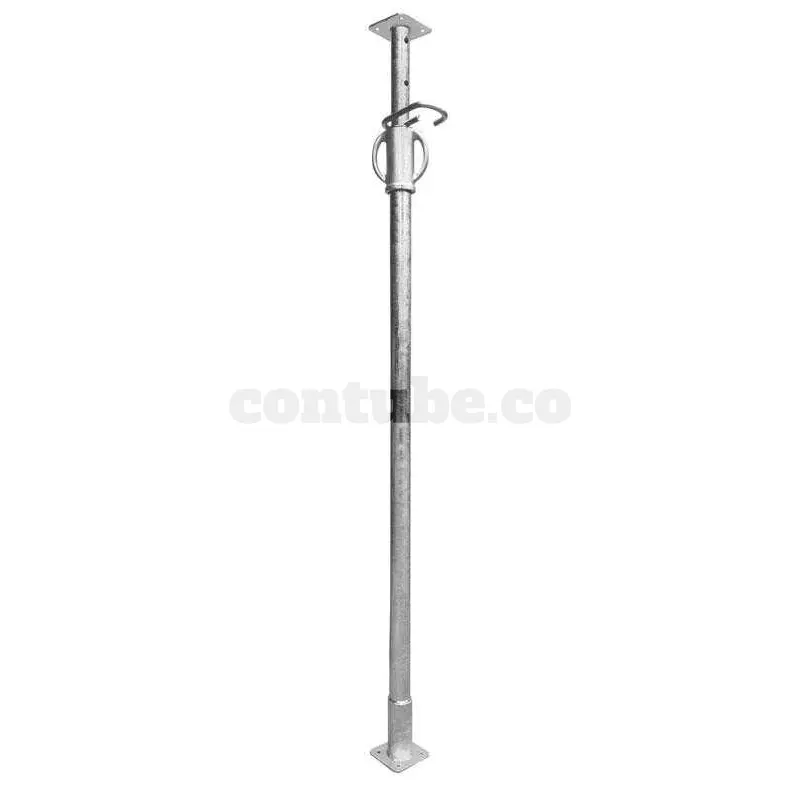

ABOUT THE “FRENCH” PROP
The french prop is a steel shoring system. It distinguishes itself from other light props for two main features:
The tubes that compose it are thicker and the presence of a cast iron sleeve.
This is the most common shoring system in France and in other French-speaking countries.

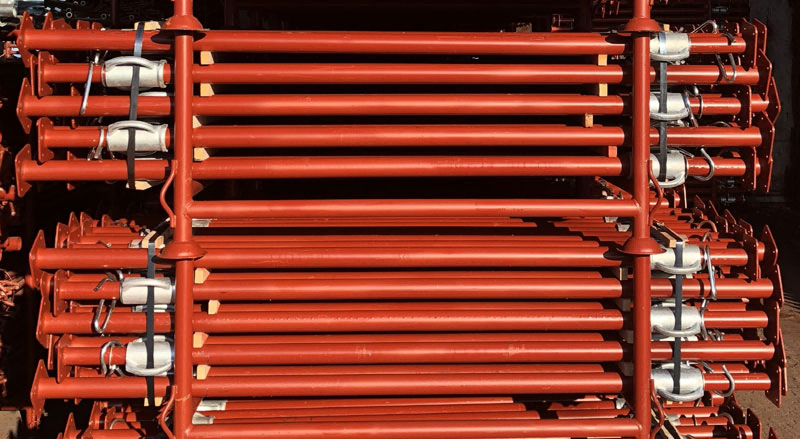

It is available in a painted version (red dipping paint) or hot-dip galvanized version.
Being resistant and economic, it suits any use when it comes to propping.
The holes located in the inner pipe at a 100 mm interval, can reach extensions varying between 170 and 400 cm.
They are compatible with most accessories of other formworks and floors.
We - at CONTUBE - manufacture 11 different models - classified according to maximum extension and capacity.
Below are their technical features.

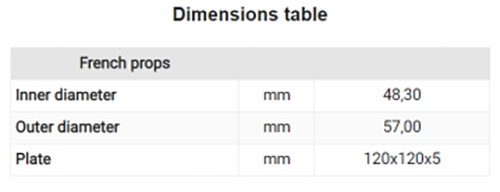

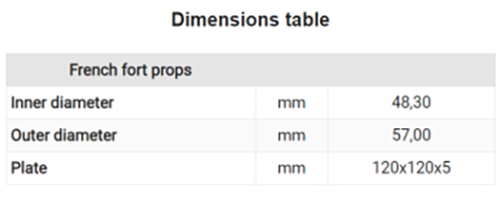

TECHNICAL FEATURES OF “FRENCH” SHORING PROP
CONTUBE french prop comes with the following features:
Drilled inner (with accurate precision and burr-free) every 100 mm so as to enable the adjustment of the prop;
S235JR steel inner and outer pipe according to the UNI EN 10219-1 / 2 standard; 8 mm pitch threaded adjustment sleeve with welded handles; Welded male, made by rolling or without material removal;
Lower and upper flat plate; High resistance safety hook for fixing between the inner and outer pipe;
Anti-shearing system to enable working under safe conditions at all times;
Reinforcement at the foot consisting of mounting an extra 200mm tube on the outer one in proximity of the lower plate;
Manufacturing standards: Italian Presidential Decree N° 164/56 ART. 7 – UNI EN 729-2:1996.
Upon request it's available the anti-disengagement system which enables quick release of the prop with little effort;

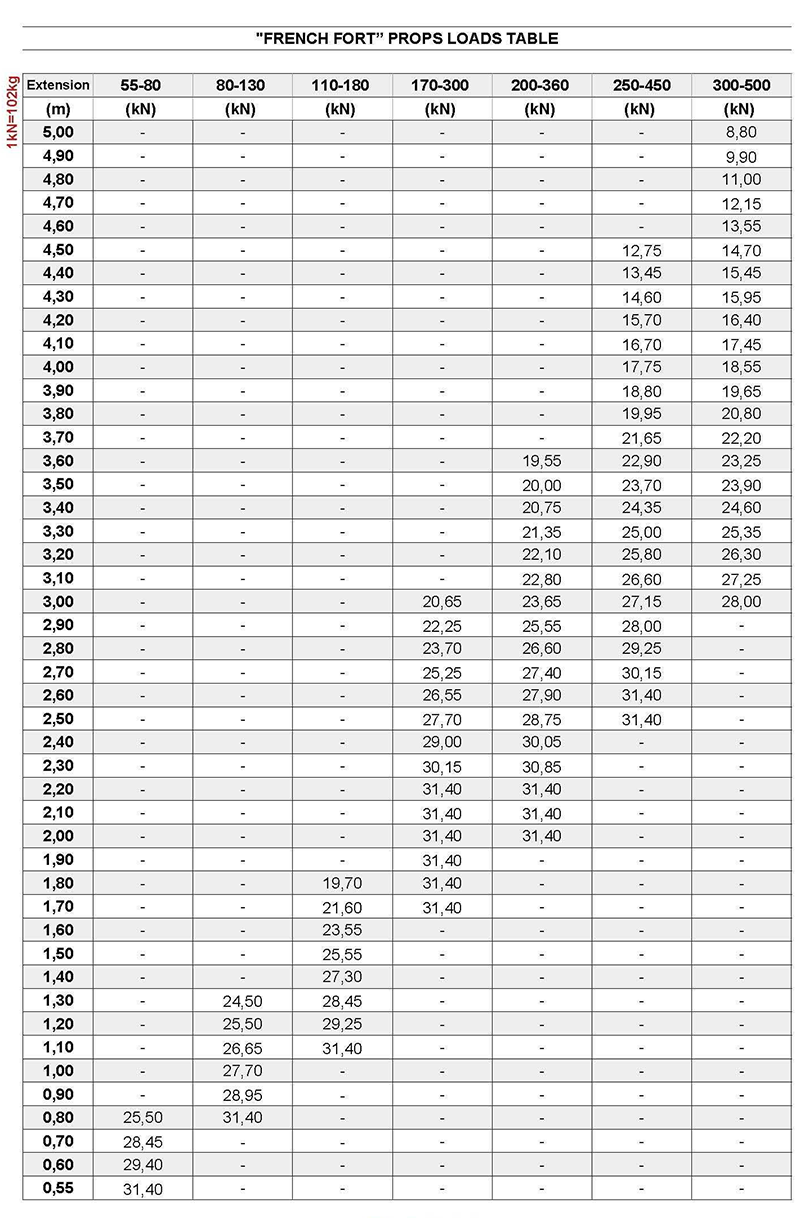

“FRENCH” PROP LOADS TABLE
