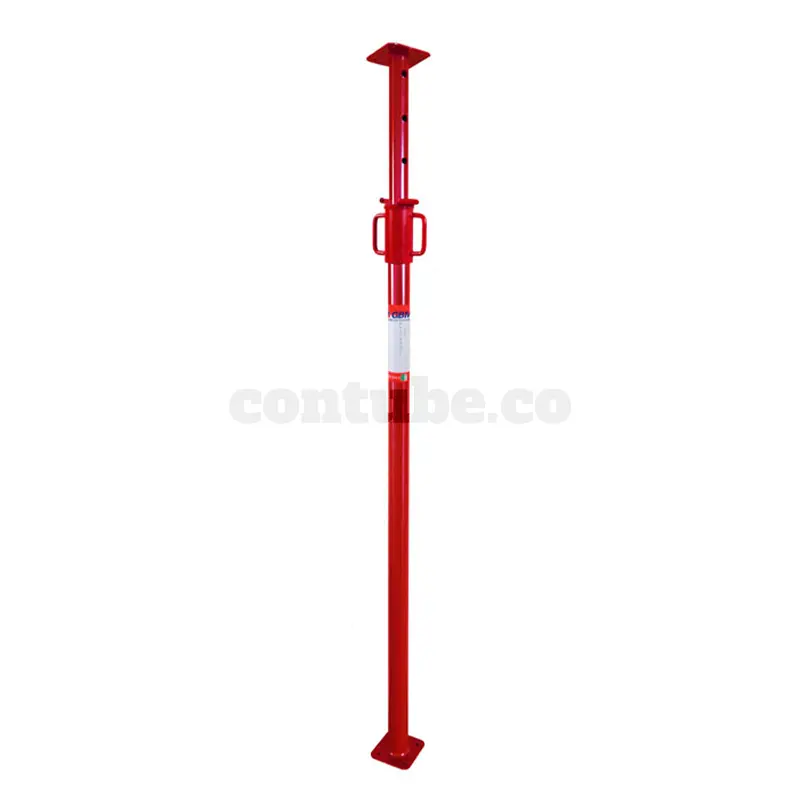

About the “Italia” prop
“Italia” prop is a standard light steel shoring system:
The most used in Italy.
Given its popularity and history, fruit of a typical Italian tradition, it is Italy’s benchmark prop abroad.
It is easy to spot due to its distinctive red colour.
Being resistant and economic, it suits any use when it comes to propping.
Italia props are hot dip coated in red (with galvanising option upon request).
The holes located in the inner pipe at a 100 mm interval, can reach extensions varying between 50 and 500 cm.
They are compatible with most accessories of other formworks and floors.
We - at CONTUBE - manufacture 8 different models - classified according to maximum extension and capacity.
Below are their technical features.
Technical features of “Italia” shoring prop
CONTUBE light duty prop comes with the following features:
Drilled inner (with accurate precision and burr-free) every 100 mm so as to enable the adjustment of the prop;
S235JR steel inner and outer pipe according to the UNI EN 10219-1 / 2 standard;
8 mm pitch threaded adjustment sleeve with welded handles;
Male threaded directly onto the outer pipe, or welded, obtained through rolling-forming i.e. without removing material;
Lower plate, available in flat or rounded version;
Upper plate available in three versions (plate, crosspiece or fork);
High resistance safety hook for fixing between the inner and outer pipe;
Anti-shearing system to enable working under safe conditions at all times;
Manufacturing standards: Italian Presidential Decree N° 164/56 ART. 7 – UNI EN 729-2:1996. Upon request:
Anti-disengagement system which enables quick release of the prop with little effort;
Reinforcement at the foot consisting of mounting an extra 200mm tube on the outer one in proximity of the lower plate;
Cast iron sleeve.

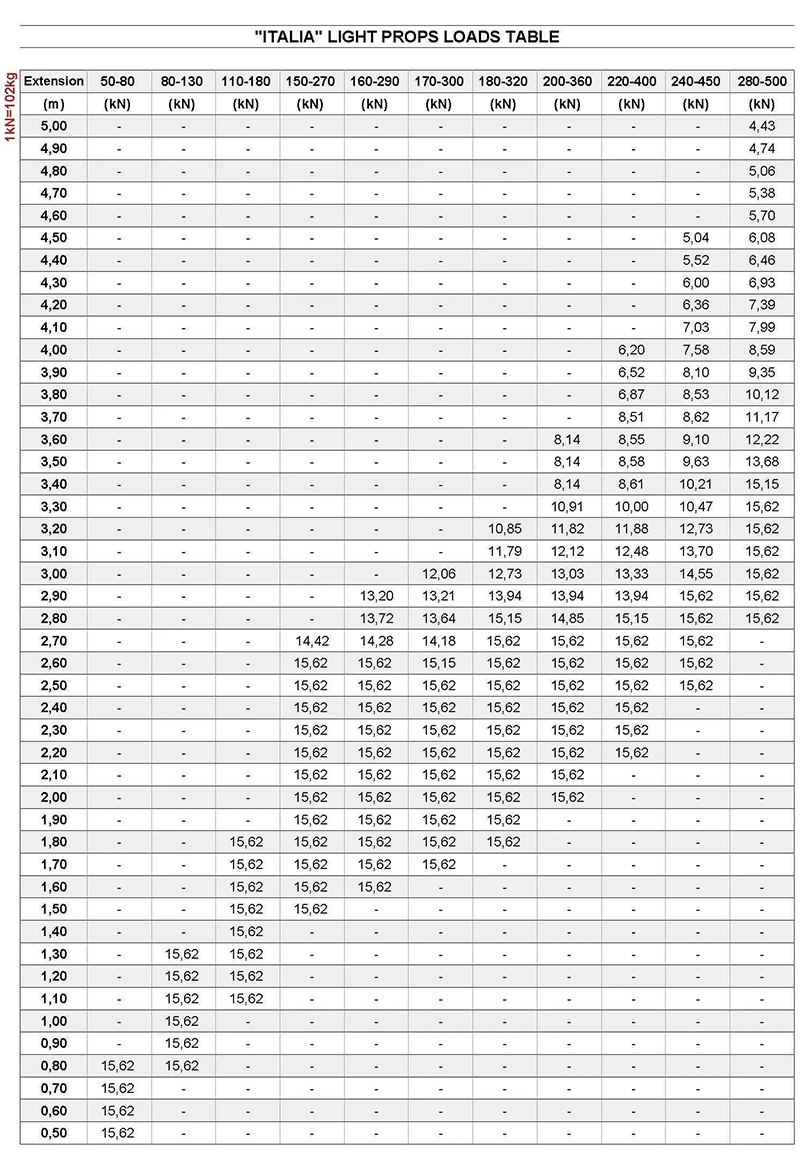

“Italia” prop loads table
